Products Description

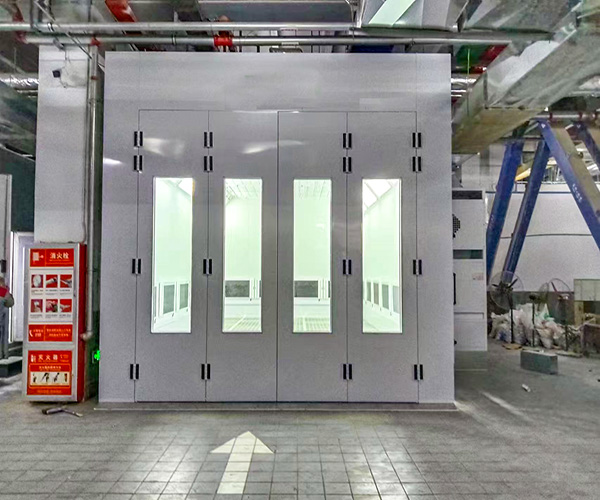

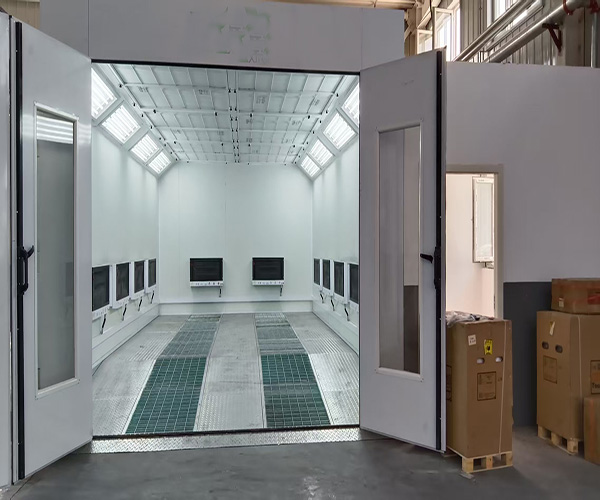

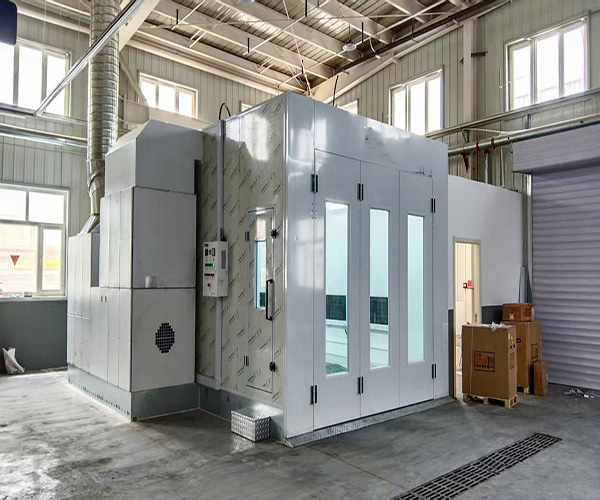

A high-end paint booth designed specifically for the automotive repair and modification industry, integrating advanced air purification, intelligent temperature control, and energy-saving technologies to ensure perfect paint treatment results. The modular structure is suitable for various vehicle types, from passenger cars to light commercial vehicles, and can operate efficiently, helping enterprises improve service quality and customer satisfaction.
Core competitive advantage
1. Excellent cleanliness, zero defects in paint surface
Quadruple filtration system: The primary filter cotton (G4 grade) intercepts large particle impurities, the medium efficiency bag filter (F7 grade) captures small dust, the top filter cotton (EU7 grade) ensures that the dust concentration in the paint mist is ≤ 0.3 μ g/m ³, and the activated carbon adsorption layer removes volatile organic compounds (VOCs).
Positive pressure sealing technology: The intake air volume exceeds the exhaust air volume by 20%, forming a micro positive pressure protective layer to completely prevent external pollutants from entering and avoid defects such as particles and orange peel on the paint surface.
Dynamic airflow management: The variable frequency fan system achieves adjustable wind speed of 0.3-0.7m/s, with a paint mist capture rate of 99.2%, reducing paint waste and lowering cleaning costs.
2. Intelligent temperature control, more precise curing of paint film
Rapid heating performance: The heating time from 20 ℃ to 60 ℃ is ≤ 10 minutes, and the temperature fluctuation is controlled within ± 0.5 ℃ to ensure consistent curing effect of the paint film.
Efficient heating module: using 316 stainless steel heat exchanger, thermal efficiency ≥ 95%, equipped with triple explosion-proof device, suitable for long-term continuous operation.
Professional level light source configuration: equipped with D65 standard light source group, with a brightness of over 1200Lux, matte white paint inner wall reflectivity of 90%, restoring true colors and improving color accuracy.
3. Humanized design, more convenient operation
Dual operation interface: 7-inch industrial touch screen console displays device status in real-time, mobile APP supports remote monitoring and parameter adjustment, and supports multi language switching.
Dual observation window: Explosion proof tempered glass window with real-time monitoring camera, making the operation process clear at a glance, supporting 4K video recording and playback.
Maintenance convenience: Quick release door seal, magnetic top cotton replacement design, daily maintenance time reduced by 70%, equipped with automatic fault diagnosis system, indicating maintenance cycle.
Application scenarios
Car repair shop paint repair
Spray painting before delivery of new cars at 4S stores
Personalized customization of modified cars
Environmental Protection Upgrade and Renovation Project
Environmental Protection and Compliance
This product has passed ISO14001 environmental management system certification, with VOCs emission concentration ≤ 30mg/m ³, in compliance with EU CE certification and US EPA standards, helping enterprises expand into international markets.
Selection suggestions
ｓｅｌｅｃｔ the model based on the daily spraying volume:
Lightweight application (<30 vehicles/day): Economy CSP-40, preferred for cost-effectiveness, suitable for small repair shops.
Standard production capacity (30-80 vehicles/day): Intelligent CSP-60, balancing efficiency and cost, suitable for medium-sized repair shops.
Industrial grade production (>80 vehicles/day): The dual station CSP-100 meets the needs of large-scale production and is suitable for large 4S dealership clusters.
Why choose us?
This product achieves an annual power savings of approximately 4500kWh per device through continuous technological innovation, with a 25% increase in paint utilization rate, helping enterprises reduce costs and increase efficiency. Whether it's improving paint quality, optimizing the working environment, or meeting global environmental compliance requirements, this equipment is your ideal choice.
Contact us immediately for exclusive solutions!
Let professional automotive paint booths assist you in upgrading your services and ushering in a new era of efficient and environmentally friendly spraying!
Tags: Car paint booth
Technical parameter
