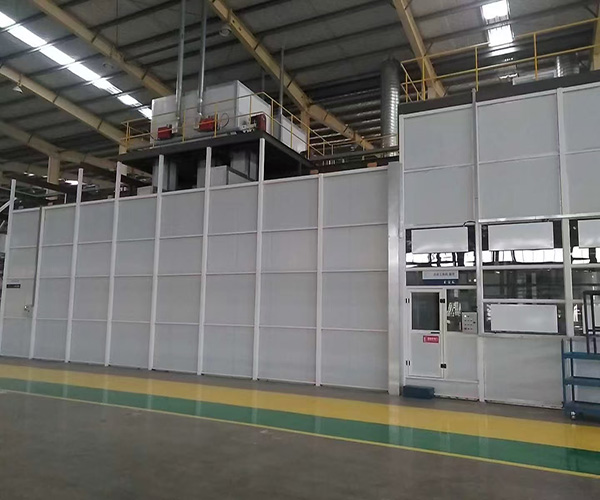

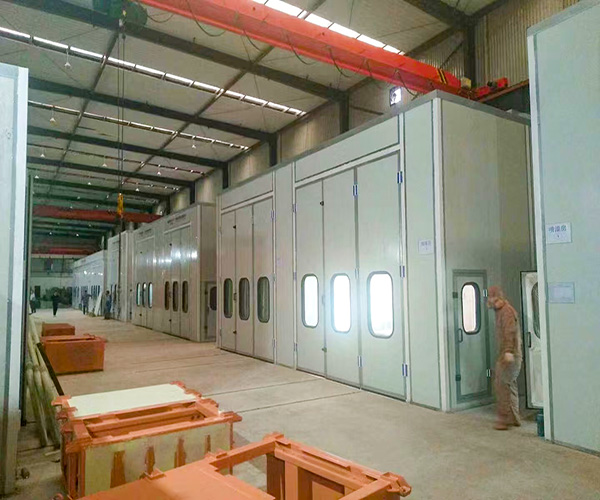

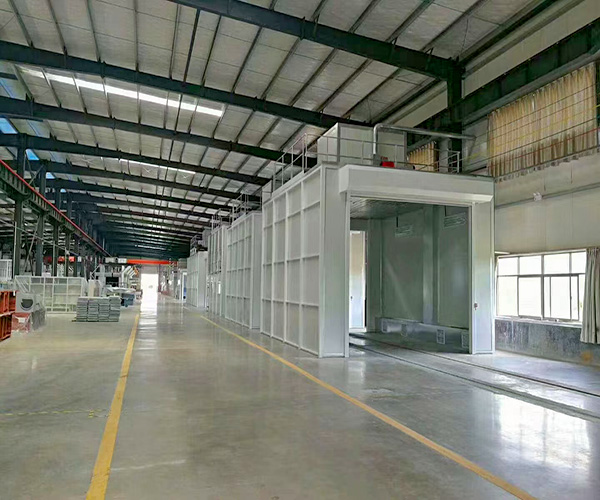

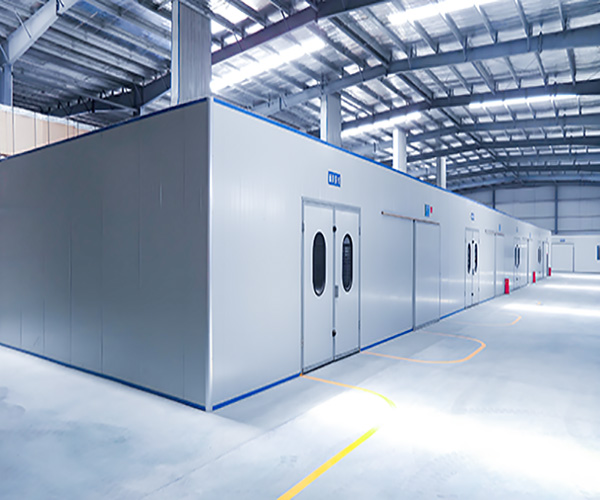

product overview

This device is a high-end spraying system designed specifically for modern furniture manufacturing industry, integrating environmentally friendly filtration, intelligent temperature control, and user-friendly operation design, suitable for high-quality surface treatment of various furniture boards. Adopting a modular assembly structure, the core components have passed international certification, which can significantly improve the uniformity, adhesion, and glossiness of the paint surface, while optimizing the working environment and ensuring the health of operators.

Core competitive advantage

1. Clean working environment and guaranteed paint quality

Three level filtration system: primary filtration cotton (G4 level) intercepts large particle impurities, medium efficiency bag filter (F7 level) captures small dust, and top cotton filtration (EU6 level) ensures that the dust concentration in the paint mist is ≤ 0.5 μ g/m ³.

Positive pressure sealing technology: The intake air volume exceeds the exhaust air volume by 15%, forming a micro positive pressure protective layer to prevent external pollutants from entering and avoid paint defects.

Dynamic airflow management: The variable frequency fan system achieves adjustable wind speed of 0.3-0.6m/s, with a paint mist capture rate of 98.7%, reducing paint waste.

2. Intelligent temperature control system, precise and efficient

Rapid heating performance: The heating time from 20 ℃ to 60 ℃ is ≤ 12 minutes, and the temperature fluctuation is controlled within ± 1 ℃ to ensure the curing effect of the paint film.

Efficient heating module: using 304 stainless steel heat exchanger, thermal efficiency ≥ 92%, equipped with dual explosion-proof devices, safe and durable.

Professional level light source configuration: equipped with D65 standard light source group, with a brightness of over 1000Lux, matte white paint inner wall reflectivity of 85%, restoring true colors.

3. Humanized design, easy to operate

Dual operation interface: 5.7-inch industrial touch screen console displays device status in real-time, and the mobile app supports remote monitoring and parameter adjustment.

Dual observation window: Tempered glass window (with explosion-proof film) combined with real-time monitoring camera, making the operation process clear at a glance.

Maintenance convenience: The quick release door seal and magnetic top cotton replacement design shorten daily maintenance time by 60% and reduce maintenance costs.

Application scenarios

Customized furniture production line paint treatment

Batch spraying operation for wooden doors and cabinets

High end solid wood furniture coloring process

Environmental Protection Renovation and Upgrading Project

Maintain the security system

Daily inspection: Check the tension of the fan belt and the reading of the differential pressure gauge of the filter cotton to ensure stable operation of the equipment.

Weekly maintenance: Clean the air intake grille, verify the temperature sensor, and prevent potential malfunctions.

Quarterly maintenance: ｒｅｐｌａｃｅ activated carbon adsorption layer, test air tightness, and extend equipment service life.

Annual maintenance: Deep cleaning of heat exchangers, calibration of control systems to maintain optimal equipment performance.

Environmental Protection and Compliance

This product has passed ISO14001 environmental management system certification, with VOCs emission concentration ≤ 40mg/m ³, in compliance with GB16297-1996 "Comprehensive Emission Standards for Air Pollutants", helping enterprises achieve green production.

Selection suggestions

ｓｅｌｅｃｔ the model based on the daily spraying volume:

Lightweight application (<50 pieces/day): economical JBP-60, preferred for cost-effectiveness.

Standard production capacity (50-150 pieces/day): Intelligent ZNP-120, balancing efficiency and cost.

Industrial grade production (>150 pieces/day): Dual station SNP-200, meeting the needs of large-scale production.

Why choose us?

Through continuous technological innovation, this product achieves an annual power savings of approximately 3800kWh per device and a 23% increase in paint utilization rate, helping enterprises reduce costs and increase efficiency. Whether it's improving product quality, optimizing the working environment, or meeting environmental compliance requirements, this equipment is your ideal choice.

Contact us immediately for exclusive solutions!

Let a professional paint booth assist you in upgrading your production and ushering in a new era of efficient and environmentally friendly spraying!
