In the hardware processing industry, surface treatment technology directly affects the corrosion resistance, wear resistance, and appearance quality of products. As a representative of modern coating technology, the powder coating assembly line has become the core solution for surface treatment of metal products due to its high efficiency, environmental friendliness, and high quality.
1、 Technical architecture and process logic of powder spraying assembly line

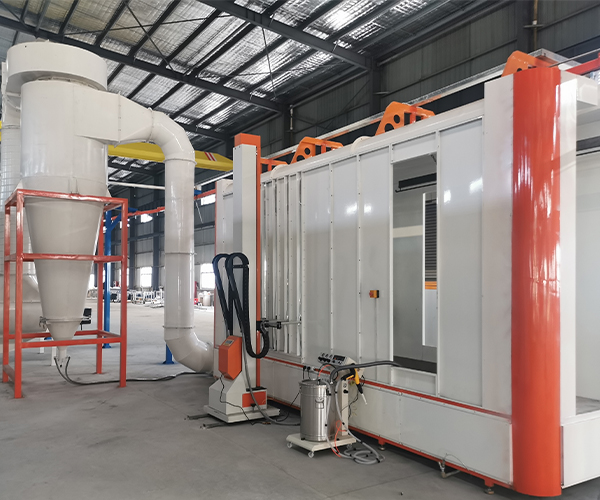

The powder spraying assembly line consists of a pre-treatment system, an electrostatic spraying system, a suspended conveyor chain, a curing furnace, and an intelligent electronic control system, forming a complete closed-loop production chain. In the pre-processing stage, oil stains and rust on the surface of the workpiece are removed through processes such as degreasing, water washing, and phosphating to ensure coating adhesion; The electrostatic spraying process utilizes a high-voltage electrostatic field to charge powder particles and uniformly adsorb them onto the surface of the workpiece, forming a dense coating of 50-300 μ m; The curing furnace melts and crosslinks the powder at a high temperature of 180-220 ℃, forming a network structure coating with excellent mechanical properties and chemical stability.
Taking a hardware enterprise in Guangdong as an example, its powder spraying line adopts a mechanical arm automatic spraying system, which can program the path of complex shaped workpieces such as door and window hinges, furniture handles, etc., achieving precise control of coating thickness ± 5 μ m, which is more than three times more efficient than traditional manual spraying.
2、 Environmental Advantages: Zero VOC Emissions and Powder Recycling Revolution
The traditional spray painting process faces challenges in VOCs emissions pollution and solvent recovery due to the use of organic solvents. Powder coating technology completely abandons solvents, and powder coatings are made of thermosetting resins such as epoxy and polyester. The curing process does not produce volatile gases and meets the national "solvent-free emission" environmental protection standard.
More importantly, the powder spraying line is equipped with a large cyclone recovery system and precision filters, with a powder recovery rate of up to 98%. For example, a certain auto parts enterprise in Zhejiang has reduced the consumption of new powder to 1/5 of traditional processes through a powder circulation system, reducing solid waste emissions by over 200 tons annually. At the same time, through a waste heat recovery system in the solidification furnace, the heat from the exhaust gas is used to heat the pre-treatment tank, reducing energy consumption by 15%.
3、 Performance Breakthrough: From "Coverage" to "Functional Enhancement"
Powder coating not only provides decoration, but also achieves functional upgrades through material innovation. Polyester powder coating is widely used in outdoor steel structures and agricultural machinery parts due to its strong weather resistance; Epoxy powder coating has become the preferred choice for anti-corrosion scenarios such as pipeline inner walls and valves due to its excellent adhesion; Fluorocarbon powder coatings, on the other hand, are used in extreme environments such as chemical equipment and marine platforms due to their "plastic king" characteristics.
In the field of automotive parts, the powder coating process enables the coating of wheel hubs and bumpers to withstand salt spray testing for over 1000 hours, which is three times more corrosion-resistant than traditional electroplating processes; In the household appliance industry, after using powder coating technology, the impact resistance strength of the coating on the refrigerator shell reaches 50kg/cm ², effectively preventing scratching and deformation during transportation.
4、 Intelligent Upgrade: From "Automation" to "Digital Twin"
With the advancement of Industry 4.0, powder coating assembly lines are evolving towards intelligence and flexibility. The modern powder spraying line integrates IoT sensors to monitor real-time parameters such as powder spraying volume, curing temperature, chain speed, etc., and automatically adjusts the process through AI algorithms, such as dynamically adjusting the spray gun angle according to the shape of the workpiece to ensure coating uniformity.
At a certain electronic parts factory in Jiangsu, the powder coating line adopts a digital twin system, which automatically generates a spraying path through 3D scanning of the workpiece model, reducing the production time from 2 hours to 15 minutes and supporting flexible production of small batches and multiple varieties. At the same time, the intelligent maintenance system can predict faults such as gun blockage and chain wear, reducing downtime for repairs by 40%.
5、 Future trend: infinite possibilities of green intelligent manufacturing
In the future, powder coating technology will develop towards a more environmentally friendly and intelligent direction. On the one hand, the development of low-temperature solidification powders (solidification temperature 120-150 ℃) and water-based powders will further reduce energy consumption and carbon emissions; On the other hand, by combining 5G and digital twin technology, the powder coating line will achieve remote monitoring, fault prediction, and process optimization, building a "black light factory" production mode.
In the hardware processing industry, powder coating assembly line is not only a technological upgrade for surface treatment, but also an important carrier for green manufacturing and intelligent manufacturing. With the continuous breakthroughs in technology, powder coating technology will help hardware products move towards higher quality, environmental friendliness, and intelligence, becoming the core driving force for industry transformation and upgrading.
